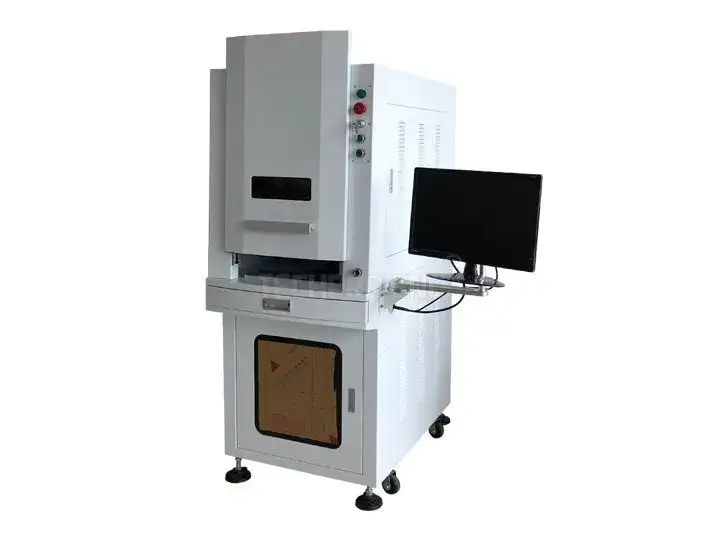

UV Laser PCB Marking Machine for Crystal Glass Ceramic Board

UV Laser PCB Marking Machine for Sale

The PCB marking machine is a specialized laser marking system for creating permanent, high-precision marks on printed circuit boards (PCBs). The machines use advanced laser technology, such as UV or green lasers, to engrave barcodes, 2D codes, serial numbers or logos directly onto the PCB surface. Featuring high-speed marking, ultra-fine resolution and minimal heat-affected zones, these machines ensure the integrity of PCB components while delivering accurate, durable results. Their non-contact process prevents physical damage to delicate electronic components and enables markings as small as 0.2mm, ideal for complex designs.

The machines are used in industries such as telecommunications, consumer electronics, automotive and medical equipment. They are particularly adept at handling a wide range of materials such as copper, aluminum and coated PCBs without damaging the substrate. Requiring no consumables such as ink or labels, these machines offer an economical and environmentally friendly solution that ensures efficiency and long-term cost savings. In addition, they are compatible with a wide range of graphic formats and automation systems, simplifying the manufacturing process and providing a seamless solution for high-volume production.

Features

1. The green laser has a short wavelength and a smaller focusing spot, enabling ultra-fine marking;
2. It is cold-worked, with small heat-affected zone, avoiding damage to processed materials and high yield;
3. Using high-speed digital galvanometer, marking speed, high efficiency and high precision;
4. No need for consumables, low cost of use and maintenance; stable performance and long-term operation;

Applicable Industries

UV laser marking machine Mainly used in the high-end market of ultra-fine processing, surface marking of packaging bottles for cosmetics, pharmaceuticals, foods and other polymer materials; marking and dicing of flexible PCB boards; micro-hole and blind hole processing of silicon wafers; LCD liquid crystal glass QR code marking, glassware marking, metal surface plating removal, plastic buttons, electronic components, communication equipment, etc.

Applications of UV Laser PCB Marking Machine

PCB laser marking machine is widely used in the industry fields with high requirements for processing materials, fine marking and minimal damage due to its excellent processing accuracy and marking effect. As a professional equipment supplier, we summarize the advantages and values of this equipment in the main industries for our customers:

1. PCB marking and cutting

UV laser PCB marking machine can mark directly on the surface of printed circuit boards (PCBs), such as serial numbers, 2D codes, bar codes, logos and other identifying information. This feature is especially critical in the electronics manufacturing field, helping to achieve product traceability and quality management.

In addition, the machine supports high-precision cutting of flexible PCB boards with smooth cutting edges and no thermal damage, which does not affect the surrounding area and ensures the quality of the finished product.

2. Microvia and blind hole processing

The UV laser machine excels in the field of micron-level processing, and is especially suitable for making microvias and blind vias on silicon wafers. These holes are widely used in semiconductor and microelectronics. The high energy density and ultra-fine focusing technology of the UV laser ensures high precision and consistency in complex processing.

3. Package marking

In packaging applications in the cosmetics, pharmaceutical, and food industries, UV lasers are able to achieve high-quality marking on the surface of packaging bottles made of polymers, with clear, fine, and durable marking results without compromising the integrity of the packaging material. This non-contact, non-damaging marking method provides customers with a more efficient and reliable solution.

4. Glass marking

UV laser equipment can mark liquid crystal glass with QR codes, serial numbers and other identifying information, and can also be applied to the marking of glassware and the removal of plating from the surface of metal/glass parts. Its high-precision and high-contrast marking capabilities make it an indispensable tool in the field of glass processing.

5. Plastic and metal parts marking

The equipment is widely used for fine marking of plastic and metal materials, such as marking the surface of buttons on consumer electronic products and automobile dashboards, with clear, long-lasting and high-precision marking effects.

In addition, the UV laser can also remove or mark coatings on metal surfaces to meet customer identification or decorative needs.

6. Electronics and communications equipment processing

UV laser machine in the electronics industry has a wide range of applications, especially suitable for marking on sensitive electronic components, processing without damage, high quality, fully meet the industry needs.

In the field of communication equipment, UV laser machine can be accurately marked on the surface of various parts, the marking content is clear, durable, for product identification, traceability and brand promotion provides strong support.

UV laser PCB marking machine with its ultra-fine, high-contrast, permanent marking characteristics, has become an important equipment in the industry with high requirements for accuracy and quality. Whether it’s improving production efficiency or enhancing product traceability and added value, this equipment provides customers with a significant competitive advantage.

For further information on product features or customized solutions, please feel free to contact us!

Technical Parameters

Packing and Shipping Detail

1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
Shipped in 3-7 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Electrical components, limit switches etc)

Our Service for UV Laser PCB Marking Machine

1.) Warranty: 3 year on parts from date of shipping date,Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, laser application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
5.) International quality certificate: FDA,CE, ISO9001 SGS etc.
