4×8 Linear ATC CNC Woodworking Engraving Machine

What is 4×8 Linear ATC CNC Woodworking Engraving Machine?

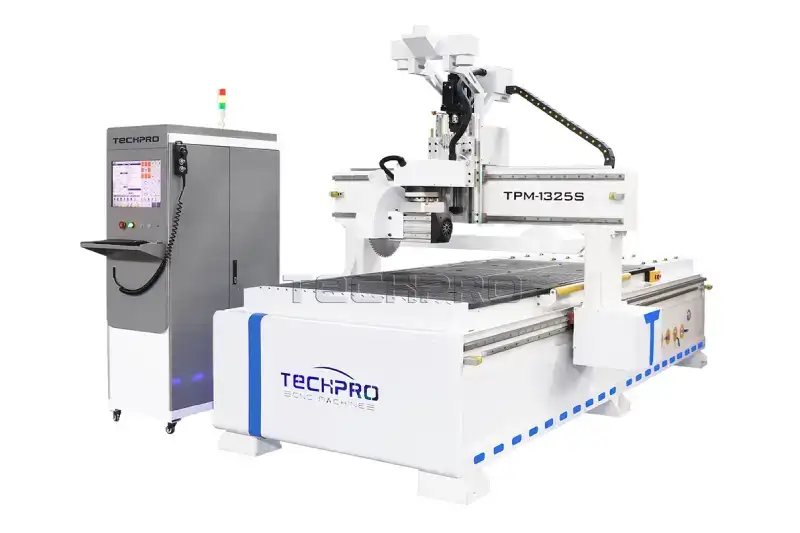

The 4×8 Linear ATC CNC woodworking engraving machine is a professional-grade intelligent woodworking machine designed for efficient handling of large format wood materials. Its main features are as follows:

Basic Configuration

Equipped with 1300×2500×300mm standard processing table (corresponding to 4×8 feet specifications), which can be adapted to the size of conventional construction boards. The main body adopts seamless welded steel structure, combined with Taiwan Hiwin H30 square guide rail and Taiwan TBI ball screw transmission system, realizing high rigidity support and ±0.01mm processing accuracy.

Power System

Equipped with dual spindles working together: the main cutting spindle adopts 9.0KW air-cooled ATC automatic tool changer spindle, with 12-position linear tool magazine, which supports rapid switching of multiple tools; the auxiliary machining is equipped with 3.5KW horizontal spindle, with no-load speed of up to 50m/min, which can take care of the needs of heavy-duty cutting and fine machining.

Intelligent Control

Adopting Taiwan LNC numerical control system, supporting G code programming and visualized operation interface, integrated vacuum adsorption/mechanical clamping dual-mode clamping system. The standard dust removal device ensures the cleanliness of the working environment, which is suitable for mass production and customized machining in the fields of furniture manufacturing and architectural decoration.

This machine significantly improves production efficiency through automated processing, and is the ideal choice for modern wood product manufacturers to realize intelligent upgrading.

Technical Parameters of 4×8 Linear ATC CNC Woodworking Engraving Machine

Accessories for 4×8 Linear ATC CNC Woodworking Engraving Machine

Applications of 4×8 Linear ATC CNC Woodworking Engraving Machine

As an all-round equipment in modern woodworking manufacturing field, 4×8 linear ATC CNC woodworking machining center shows strong adaptability and high productivity in many industry fields by virtue of its automatic tool changer system and high-precision machining capability. The following are the main application areas of the machine:

Furniture Manufacturing Field

Whole-house Customized Processing

• Precision cutting and carving of cabinet doors/drawer fronts.
• Shaped parts molding and surface relief carving of solid wood tables and chairs.
• Batch production of decorative lines and carved components.

Architectural Decoration

• Door and window casings/skirting profiling.
• Three-dimensional carving and hollow modeling of decorative wall panels.
• Curved surface molding of artistic ceiling components.

Commercial Display Applications

Signage Production

• Three-dimensional character plate cutting and hollowing carving.
• Cultural wall relief art processing.
• Commercial space display rack customization.

Cultural and Creative Product Development

• Crafts and gifts carving and inlay production.
• Three-dimensional modeling processing of art ornaments.
• Customized production of cultural and creative packaging.

Engineering Supporting Fields

Mold Modeling

• Precision milling of casting molds.
• Architectural sand table modeling.
• Industrial product prototyping.

Musical Instrument Manufacturing Process

• Guitar Body Curved Molding.
• Piano Resonator Precision Machining.
• Ethnic musical instrument carving decoration.

Composite Material Processing

Deep Processing of Plate Material

• Plywood/Medium Fiberboard Profiled Cutting.
• Nested cutting of composite materials.
• Decorative laminated board milling.

New Technology Application

• Laser engraving composite processing.
• Multi-material combination processing.
• Metal wood grain transfer process.

Special Industry Applications

Automotive Shipbuilding

• Interior wood grain panel engraving.
• Curved surface processing of yacht wood components.
• Dashboard imitation wood grain decorative parts.

Education and Research

• CAD/CAM Teaching Demonstration.
• Creative design work realization.
• Process technology research and development verification.

The 24-station automatic tool changer system of this equipment can realize the seamless connection of drilling, milling and engraving, etc. With the vacuum adsorption table and intelligent dust removal system, it is especially suitable for large-volume customized production. Its processing width is up to 2440x1220mm standard plate specifications, with four-axis linkage function, it can complete complex three-dimensional modeling processing, which is the core equipment to enhance the enterprise’s production capacity and process level.

4×8 Linear ATC CNC Woodworking Engraving Machine Processing Samples

Why Choose 4×8 Linear ATC CNC Woodworking Engraving Machine?

Nowadays, in the wave of intelligent manufacturing upgrading, high efficiency, high precision and high adaptability of production equipment has become the core competitiveness of wood processing enterprises. 4×8 Linear ATC CNC woodworking engraving machine produced by TechPro, as a revolutionary industrial equipment, provides a comprehensive solution for modern manufacturing enterprises with six core advantages:

1、High Precision and Industrial Durability

– Military-grade structural design: the overall welded steel body, with Taiwan Hiwin H30 square guideway and TBI ball screws, to achieve ± 0.01mm ultra-precision machining.

– Large-size machining platform: 1300×2500×300mm standardized worktable, supporting the whole material processing of construction-grade boards, increasing the utilization rate of raw materials by more than 30%.

2、Dual Power Cooperative Operation System

– 9.0kW intelligent spindle: equipped with 12-station linear tool magazine, realizing 5-second quick tool change to meet the needs of complex engraving/slotting/drilling and other precision work.

– 3.5kW auxiliary machining head: 50 meters/minute high-speed cutting capacity, perfectly connecting the roughing and finishing processes, increasing the comprehensive efficiency by 40%.

3、Intelligent Production Management System

– LNC intelligent control platform: graphical programming interface supports G-code operation, real-time monitoring of machining accuracy and equipment status.

– Dual-mode positioning system: vacuum adsorption + mechanical clamping dual fixation program, adapting to 0.5-100mm thickness material stable processing.

– Full-time dust removal program: integrated negative pressure dust suction device, working environment cleanliness increased by 80%, equipment maintenance cycle extended by 2 times.

4、Cross-field Processing Capability

Covering the whole scenario of wood processing needs:

– Furniture manufacturing: solid wood carving/cabinet cutting/shaped surface processing.

– Architectural decoration: artistic relief/customized doors and windows/three-dimensional wall panel production.

– Cultural and Creative Products: Crafts and Gifts / Musical Instrument Parts / Display Props Production.

– Industrial supporting: mold development / automotive interior / composite material processing.

5、Forward-looking Technology Configuration

– Four-axis linkage technology: support complex three-dimensional surface continuous processing.

– Multi-material compatibility: wood/engineering plastics/lightweight metal composite processing.

– Flexible production expansion: modular design to support functional upgrades to meet the needs of customized production.

6、Quantifiable Benefit Output

– 24-station tool magazine system: reduce 90% of manual intervention, realize continuous machining.

– 50m/min cutting speed: daily production capacity increased to 3 times of traditional equipment.

– Intelligent programming system: reduce machining error rate to less than 0.5%.

– Training support system: CAD/CAM teaching module to shorten the technician training cycle.

The equipment has been successfully applied to the intelligent transformation of 300+ manufacturing enterprises, helping them realize:

• ✓ Comprehensive production cost reduction of 35%.
• ✓ 60% increase in high-end customized business.
• ✓ Product yield rate increased to 99.2%.
• ✓ 50% increase in market response time.

As a strategic equipment for industrial upgrading, the 4×8 linear ATC CNC woodworking engraving machine is redefining the standard of wood products processing. Immediate upgrading will build the workshop into a benchmark platform for the integration of precision manufacturing and creativity.

How to Maintain Your 4×8 Linear ATC CNC Woodworking Engraving Machine?

In order to guarantee the long-term stable operation of the woodworking CNC router, enhance the machining accuracy and prolong the service life, please follow the following systematic maintenance program:

Daily Maintenance

Equipment cleaning management

• It is recommended to use industrial vacuum cleaner or soft brush to clean the processing residues, focusing on checking the smoothness of the vacuum adsorption holes.
• Clean the dust collection system before the end of each day, keep the porosity of the filter > 85%.

Maintenance of core components

• Lubricate Hiwin H30 guideway and TBI ball screws according to standard (Mobil XHP222 grease is recommended).
• Spindle system requires “two cleanings and one inspection”: compressed air cleaning, cooling air duct cleaning, and operation noise detection.

Tool management system

• The 12-station tool magazine needs to verify the positioning accuracy every day, and keep the contact surface of the tool shank clean.
• Establish a tool life account, timely replacement of toolholder fixtures with wear > 0.02mm.

Weekly Maintenance

Mechanical system inspection

• Use torque wrench to re-tighten the key parts of the bolts (spindle synchronous belt tension to maintain 90 ± 5N).
• Use micrometer to check the axial backlash (tolerance ≤ 0.015mm).

Electrical system inspection

• Check whether the bending radius of the drag chain cable meets the standard of R=200mm.
• Verification of emergency stop circuit response time <0.5 seconds.

Monthly In-depth Maintenance

Lubrication system maintenance

• Replace the special high-speed grease for spindle bearings (Klüber NB52 is recommended).
• Clean the automatic lubrication distributor to ensure that the flow rate of each oil injection point is balanced.

Vacuum system optimization

• Test the ultimate vacuum degree of vacuum pump (should reach -90kPa or above).
• Calibrate the response time of vacuum partition control solenoid valve.

Quarterly Precision Calibration

Geometric precision compensation

• Use laser interferometer for full-stroke positioning compensation (accuracy requirement ±0.01mm/m).
• Use the ballbar to detect the roundness error of each plane.

Control system maintenance

• Update LNC system parameter database.
• Calibrate the interpolation accuracy of G-code parser.

Annual Overhaul Project

Replacement of core components

• Replacement of spindle angular contact bearing set (NSK 70BNR10 series recommended) according to the number of running hours.
• Optional intelligent tool wear monitoring module for system upgrade.

Safety system validation

• Execution of EN 848-1 standard safety test.
• Testing of the response sensitivity of the guard door interlocking device.

This maintenance program is based on the ISO 16090 machine tool safety standard, and it is recommended that preventive maintenance be carried out in conjunction with the equipment operation monitoring system. After each maintenance, you need to fill in the “equipment health file”, record the main parameters of the trend, to provide data support for the whole life cycle management of the 4×8 linear ATC CNC woodworking engraving machine.
