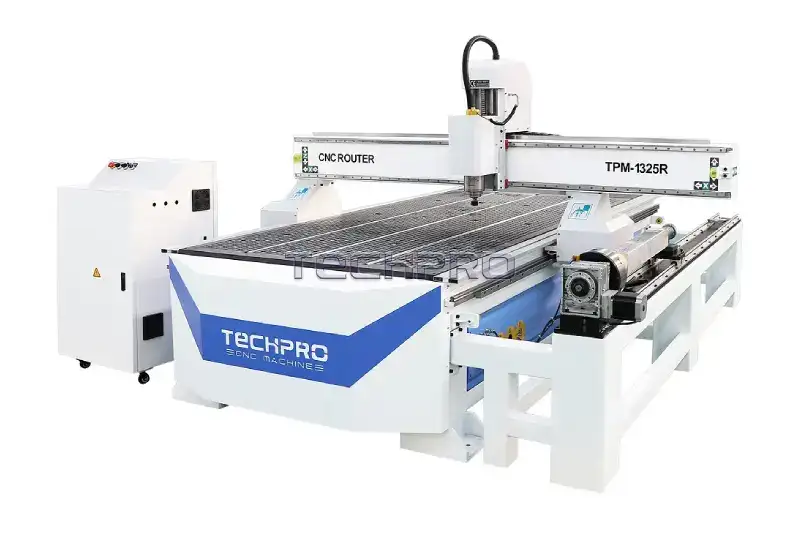

4 Axis CNC Router Wood for Sale

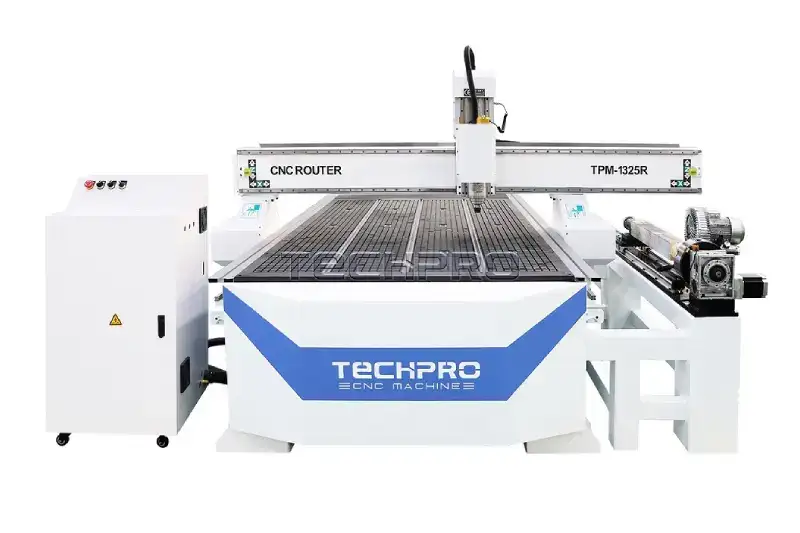

What is 4-Axis CNC Router for Wood?

The 4 Axis CNC Router Wood is an intelligent machining machine that adds an A-axis rotary table to the traditional 3-axis machine (X/Y/Z linear axes). The machine realizes the automatic rotary positioning of the workpiece through the fourth axis, and can complete complex processes such as cylinder carving and shaped surface machining, which is especially suitable for the efficient production of high-precision wood products such as furniture components and architectural decoration.

Machine Core Configuration

Multi-axis Linkage System

• Linear motion system: 4-Axis CNC wood router adopts HIWIN high-precision linear guideway with rack and pinion drive, which can realize the X/Y axis running at a high speed of 45m/min.
• Z-axis precision control: using ball screws and HIWIN guideways for higher machine accuracy (repositioning accuracy of ±0.03 mm).
• C-axis rotary platform: 180° rotary processing capability, support for continuous engraving of complex surfaces.

Power System

• Italian HSD spindle (standard 9kW): 0-24,000rpm stepless variable speed, optional domestic HQD series.
• ER32 universal collet: compatible with 3-20mm tool quick-change.
• Drum-type tool magazine system: standard 12-station automatic tool changer (optional expansion).

Intelligent Control System

• Taiwan SYNTEC/LNC numerical control system: support Type3, ArtCAM and other professional design software.
• High-speed computing platform: 512MB flash memory + Ethernet / CF card dual interface.
• Japan YASKAWA servo motor: full closed-loop control to guarantee the operation precision.

Performance Advantages of 4 Axis CNC Router Wood

Increased Machining Efficiency

• 3-axis linkage speed up to 30 meters/minute.
• Automatic tool change time <5 seconds.
• Centralized lubrication system extends maintenance intervals.

Process Expansion

• Support four-axis linkage engraving.
• Can process cylindrical workpiece with diameter ≤Φ600mm.
• Realize seamless processing of hexahedron.

Production Stability

• Japan Omron safety protection system.
• Full servo drive program to ensure long-term accuracy.
• Industrial-grade dustproof and shockproof design.

With the synergistic operation of the rotary axis and the automatic tool changer system, the 4 axis CNC router wood can significantly improve the processing efficiency of complex wood products, which is especially suitable for the mass production needs in the fields of customized furniture and artistic carving. Its modularized design allows flexible optional laser positioning, dust removal system and other extended functions to meet the technical requirements of diverse production scenarios.

Accessories for 4 Axis CNC Router Wood

Applications of 4-Axis CNC Router for Wood

The 4 Axis CNC Router Wood expands the possibilities of woodworking thanks to the addition of a rotary axis (A-axis). The following are its main applications:

Core Application Areas

Furniture Design and Manufacturing

• Shaped components processing: spiral table legs, curved chair backs and other complex shapes molded in one go.
• Decorative parts production: cabinet relief, three-dimensional headboard carving, closet geometric ornamentation.
• Customized production: restoration of antique carvings and reproduction of personalized patterns.

Musical Instrument Precision Machining

• Stringed instruments: guitar body surface molding, violin bridge precision carving.
• Wind instruments: flute cavity machining, clarinet tone hole positioning.
• Resonance components: precise control of the dimensional tolerance of the resonance chamber of musical instruments.

Architectural Decoration Engineering

• Shaped structural components: spiral columns, artistic railings, curved cornices.
• Decorative components: customized door and window lines, embossed wall panels, artistic ceilings.
• Standardized production: batch reproduction of complex architectural components.

Artistic Creation Field

• Three-dimensional carving: religious statues, artistic reliefs, landscape sculpture.
• Surface carving: cylindrical ring carving, shaped vessels carving and painting.
• Logo production: three-dimensional three-dimensional characters, surface logo carving.

Core Technology Advantages

Processing Performance Improvement

• Four-axis linkage realizes 360°continuous processing, eliminating repetitive positioning of workpieces.
• Compound trajectory programming capability (maximum machining accuracy ±0.03mm).
• Automatic tool change system (ATC) to enhance the efficiency of multi-process operation.

Process Innovation Breakthrough

• Supports the programming of complex tool paths such as undercut and spiral.
• Realization of shaped structures that are difficult to accomplish with traditional processes.
• Compatible with batch processing and customized requirements.

Expanded Material Application

• Main material: solid wood/artificial board (MDF/HDF/plywood).
• Auxiliary materials: engineering plastics (acrylic/PVC).
• Expanded applications: soft metal (aluminum / brass) processing.

Comparison of 4-Axis and 3-Axis Machine Performance

Processing Efficiency Improvement

• Reduce more than 60% of manual intervention.
• Reduce the material loss rate of about 35%.
• Reduce the cycle time of complex workpieces by 40-50%.

Process Capability Breakthrough

• Solve the bottleneck of continuous cylinder engraving technology.
• Realize seamless processing of three-dimensional surface.
• Expanding the processing possibilities of complex fittings.

The 4 axis CNC router wood perfectly integrates digital control and traditional wood art, which not only meets the demand for industrialized mass production, but also retains the artistic expression of hand-carving, and has now become the standard configuration for the modern wood products processing industry. Its outstanding performance in improving production capacity and ensuring quality consistency is promoting the transformation and upgrading of the traditional woodworking industry to intelligent manufacturing.

Samples of 4 Axis CNC Router Wood

4 Axis CNC Router Wood Maintenance and Care

Maintenance

Regular maintenance can effectively avoid precision deviation (±0.03mm), unplanned downtime and high maintenance costs, especially for HSD spindle, Yasukawa servo system and other precision components to maintain the performance of critical. The following are detailed maintenance guidelines:

Daily Maintenance

Whole Machine Cleaning

• Use vacuum equipment to remove wood chips from table/guideway/spindle surface.
• Wipe the resin residue to keep the machine neat and tidy.

Lubrication Inspection

• Confirm the oil level of the automatic lubrication system (TechPro original grease is recommended).
• Manually re-coat exposed rails/ball screws.

Tool Management

• Check ER32 collet taper cleanliness.
• Verify tool edge wear.

Vacuum System

• Clean suction table T-slot debris.
• Check vacuum pump filter.

Weekly Maintenance

Deep Cleaning

• Use anhydrous ethanol to wipe the HIWIN guideway.
• Clean up the dust accumulated in the electric control cabinet (compressed air pressure ≤ 0.3MPa).

Transmission Detection

• Detect X/Y axis gear meshing clearance (standard value 0.05-0.08mm).
• Calibrate belt tension.

Spindle Maintenance

• Perform 10 minutes of low-speed (8000rpm) idling.
• Listen to bearing noise.

Monthly Maintenance

Precision Lubrication

• Replenish lithium grease (special for HIWIN guideway).
• Z-axis backlash detection (allowable value ≤ 0.02mm).

Electrical Testing

• Tighten Schneider contactor terminals.
• Check servo motor ventilation system.

Precision Calibration

• Full-stroke positioning verification using micrometer.
• C-axis rotary accuracy recalibration.

Annual Overhaul

Maintenance of Core Components

• Replacement of all oils in the automatic lubrication system.
• HSD spindle professional grade bearing replacement (need to return to the factory).

Structure Inspection

• Full frame level calibration (error ≤ 0.02mm/m).
• Welding parts flaw detection.

System Upgrade

• Synchronization with the new version of Syntec control system.
• Backup machine parameters and tool magazine data.

Long-term Management Specification

▶ Environmental Control

• Maintain environmental humidity 30-75%RH.
• Configure a three-stage dust removal system (HEPA + cyclone combination recommended).

▶ Operation Specification

• Strictly prohibit over 30m/min feed speed operation.
• Use ISO standard cutting tools (recommended φ6-12mm specifications).

▶ Personnel Requirements

• Daily point inspection by licensed operators.
• Quarterly safety training (with LOTO program).

Common Maintenance Mistakes Warning

× Mixing different types of lubricants.

× Violent disassembly of tool holders.

× Ignoring spindle temperature alarms.

× Using non-standard G-code programs.

This maintenance program is based on the technical parameters of TechPro CNC equipment and is recommended to be used in conjunction with the original maintenance kit. Standardized implementation ensures that the equipment remains in optimal condition during precision work such as musical instrument production and relief machining, and the overall failure rate can be reduced by more than 72%.

(Note: The numerical parameters are based on GB/T 25667.3-2010 “CNC Woodworking Machine Tools” standard. This solution is applicable to 4 Axis CNC Router Wood.)

Services for 4 Axis CNC Router Wood

Jinan TechPro CNC Machinery Co., Ltd. provides a full-process service system for 4-axis CNC woodworking engraving machines, from pre-program design to post-maintenance support, to help enterprises achieve efficient and intelligent production. We rely on our professional technical team and complete supply chain to ensure the stable operation of the equipment throughout its life cycle.

Pre-sales Service

Expert Consultation and Customized Solutions

• Process demand diagnosis: professional engineers visit the production process, analyze the material characteristics and processing precision requirements.
• Accurate matching of models: Provide standard/customized four-axis model configuration (optional 9kW HSD spindle and other core components).
• Verification of real-life effect: support factory field test machine or remote video demonstration, intuitively show the machining accuracy (±0.03mm) and dynamic performance of the equipment.

Flexible Business Cooperation Mode

• Factory direct price system: eliminating intermediate costs, enjoying the advantages of source procurement.
• Diversified payment program: support T/T, LC and other international trade settlement methods.

Project Implementation Stage

Standardized Delivery Management

• Global logistics guarantee: professional customs clearance team + customized transportation solutions to ensure that the equipment arrives at the factory safely and on time.
• Factory quality control: Strict implementation of ISO quality certification system, triple testing process to ensure 4 axis CNC router wood performance.

Personalized Configuration Upgrade

• Structural customization: support table size/vacuum adsorption system and other hardware modification.
• Function Expansion: Optional tool magazine system (12-24 stations), dust collection device and other auxiliary equipment.
• Software adaptation: fully compatible with Type3, ArtCAM and other mainstream design software.

After-sales Guarantee

Standardized Installation Service

• Professional engineers on-site: complete the whole process of equipment assembly/level calibration/functional testing.
• Three-dimensional training system: covering G-code programming, tool management, equipment maintenance and other practical courses.

All-weather Technical Support

• 7×24 hour response mechanism: video diagnosis/remote control and other multi-channel technical support.
• Rapid troubleshooting: Establishment of rapid maintenance channels for core components such as HIWIN guide rails and Yaskawa servo systems.

Preventive Maintenance Service

• Customized maintenance plan: regular maintenance of key components such as spindle systems and lubrication devices.
• Global Spare Parts Network: Stock HSD spindle holders, Shimpo gearboxes and other original parts, 72-hour response to urgent needs.

Core Competitive Advantages

√ Intellectual Strength: equipped with self-developed CNC system, supporting the expansion of intelligent modules such as drum tool changer.

√ Full-process Accountability: single-window service docking from program design to equipment decommissioning.

√ Continuous Upgrading Ability: Iterative R&D system based on 2000+ customer cases.

Value Commitment

With the service concept of “equipment full-cycle housekeeper”, we help customers realize:

✓ Increase the comprehensive efficiency of the equipment by more than 35%.

✓ Complex surface machining qualification rate ≥ 99.6

✓ Annual average unplanned downtime control within 8 hours

Start Smart Upgrade Now!

Welcome to contact TechPro service team to get it:

① Specialized Configuration Plan ② Plant Planning Suggestion ③ Capacity Improvement Simulation Report ④ High Quality 4 Axis CNC Router Wood
