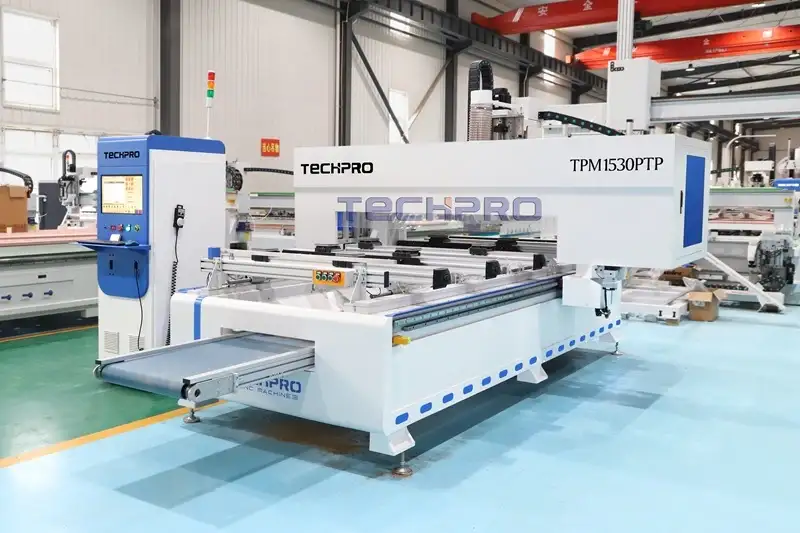

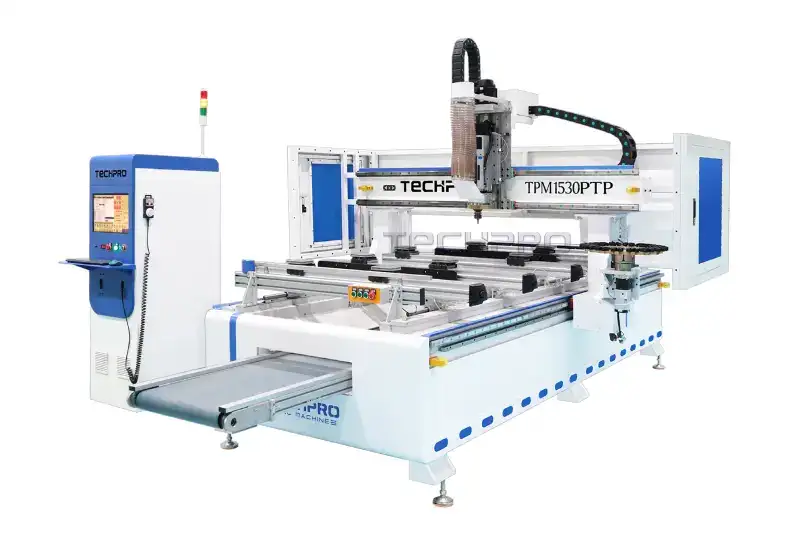

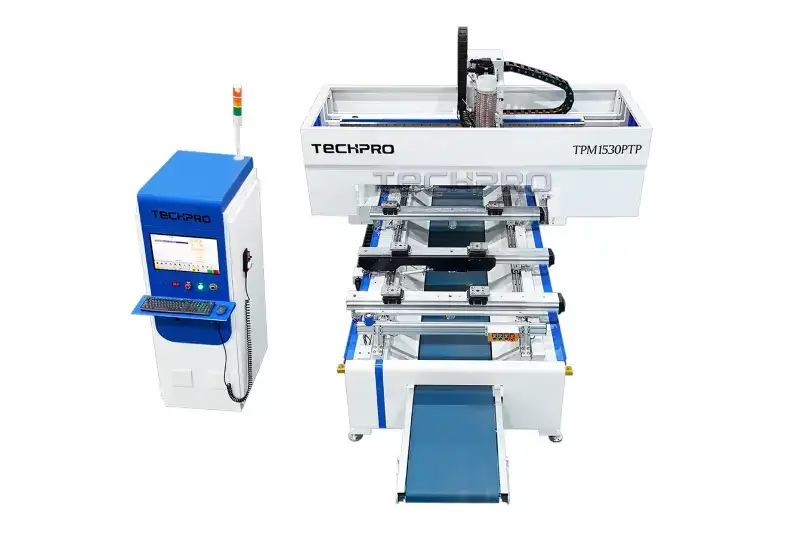

Industrial CNC Machine 5×10 with Dual ATC Kits

What is Industrial CNC Machine 5×10 with Dual ATC Kits?

As a benchmark machine for industrial woodworking and composite material processing, the TPM1530PTP industrial CNC machine with Dual ATC kits has become the preferred solution for the furniture manufacturing, decorative engineering and art engraving industries due to its precision machining capability and industrial durability. Below you will learn more about the machine from the core configuration to the application benefits.

Main Features of Industrial CNC Machine 5×10

Industrial-grade Structural Design

Excellent structural strength

• Integral welded steel bed, high-temperature aging treatment to eliminate internal stress, with precision manual scraping process, the key contact surface flatness error ≤ 0.01mm, to ensure the stability of the TPM1530PTP for long-term operation.

Lightweight rigid frame

• The column and support components are made of aviation-grade cast aluminum alloy, which reduces the weight by 35% and maintains the structural rigidity, and the effective stroke of X/Y axis reaches 3000×1500mm, which meets the demand of large-size workpiece processing.

High Precision Transmission System

Professional grade guideway configuration

• X/Y axis adopts Taiwan HIWIN 30mm four-direction equal-load roller guideway, the maximum load can reach 5000kg, support 60m/min high-speed traverse and maintain ±0.02mm positioning accuracy.

Precision drive mechanism

• The Z-axis is equipped with TBI C3 level grinding ball screws, with pre-tensioned mounting process, effectively eliminating thermal extension errors, vertical repeatability of positioning accuracy of ±0.01mm.

Intelligent Machining System

High-efficiency spindle unit

• Equipped with Italian HSD 9kW air-cooled inverter spindle, supporting 0-24000rpm stepless speed change, equipped with intelligent temperature control system, it can run stably for 72 hours continuously, suitable for wood, acrylic and non-ferrous metal processing.

Tool magazine with automatic tool change

• Equipped with 24-station disc type double tool magazine system, supporting ISO30 tool shank quick tool change (3-12.7mm tools are compatible), tool change time ≤ 5 seconds, realizing unattended processing of complex processes.

Intelligent Control System

Professional CNC platform

• Adopting LNC-M800 intelligent CNC system, compatible with Type3/ArtCAM and other mainstream design software, supporting 5-axis linkage machining and G code editing, and capable of handling 3D surface engraving with 0.01mm precision.

Servo drive program

• Equipped with 1500W AC servo motor set, with 17bit high-resolution encoder, it can still maintain 0.005mm track following accuracy at 60m/min high speed machining.

Industrial Grade Auxiliary System

High-efficiency dust removal device

• Integrated 6000Pa negative pressure dust removal system, equipped with cyclone separation and bag secondary filtration, dust collection efficiency ≥ 98%, in line with occupational health and safety standards.

Intelligent maintenance system

• Equipped with full-automatic centralized lubrication device, with oil pressure monitoring and oil shortage alarm function, the maintenance cycle of key components is extended to 2000 hours.

Why Choose this Machine?

• Improved machining efficiency: Tool magazine system increases the machining efficiency of complex workpieces by 40%.
• Operational cost optimization: automated system reduces manual intervention by 60%.
• Wide material adaptability: 24 types of materials can be processed, such as density board, aluminum, carbon fiber, etc.
• Guaranteed precision: Equipped with laser tool setting instrument to realize automatic tool length compensation.

Through modular design and intelligent configuration, this industrial CNC machine provides manufacturing enterprises with a complete solution from mass production to customized machining, which is especially suitable for modern production scenarios that need to balance machining accuracy and capacity requirements. The innovative application of its tool magazine system redefines the efficiency standard of industrial-grade CNC equipment.

Technical Parameters of Industrial CNC Machine 5×10 with Dual ATC Kits

Applications for 5×10 Industrial CNC Machine with Dual ATC Kits

This 5×10 ft (1500 x 3000 mm) Industrial CNC Machine with Dual ATC Kits system meets the demands of complex processes and is suitable for multi-industry precision machining scenarios thanks to its large machining range combined with a 24-tool automatic tool change system. The following are the typical application areas and project ideas of this router:

Wood Products Processing Field

Customized furniture manufacturing

• High-end solid wood furniture: precision processing of tables, chairs, cabinets, shelves and other products, to achieve complex mortise and tenon structure and 3D relief process.
• Door and window components processing: high-precision carving paint-free MDF doors, composite doors and windows and decorative lines.
• Musical instrument production: making high-precision curved parts and artistic inlays for guitars, pianos and other musical instruments.
• Overall cabinet production: batch processing of standardized cabinet panels and shaped decorative components.
• Crafts carving: production of photo frames, puzzles and other decorative items and personalized custom gifts.

Architectural Decoration Field

Art decoration project solutions

• Three-dimensional relief carving: precision processing of wall decorative panels, artistic screens and architectural sculptures.
• Architectural decorative components: production of carved lines, Roman columns and other European decorative components.
• Stone carving process: marble/granite carving for monumental inscriptions and architectural nameplates.

Industrial Manufacturing Field

Mold development and production

• Injection mold manufacturing: precision processing of various types of industrial product molding molds.
• Composite material processing: high-precision cutting of carbon fiber parts for aerospace.
• Sheet metal processing: CNC molding of electrical appliance shells and decorative metal parts.

Advertising Display Field

Commercial display system solutions

• Customized signage production: processing of three-dimensional letter boards, LED light-emitting characters and display devices.
• Display props production: acrylic light boxes, promotional booths and other commercial props production.

Special Application Scenarios

High-end customized product solutions

• Yacht wood trim processing: teak components for boat decks and interior cabinets.
• Automobile customized interior: luxury models with wood grain panels and instrument panel precision processing.
• Sports equipment manufacturing: ergonomic molding of clubs, bows and other equipment.

Major Advantages Realization of Diversified Applications

Tool magazine synergistic system: supports 24 kinds of tools switching automatically, realizing milling/drilling/engraving process seamlessly.

High-performance machining platform: 9kW high-frequency spindle (24,000 rpm) with servo-driven system ensures the machining accuracy of hard materials.

Multi-material adaptability: Compatible with wood, engineering plastics, non-ferrous metals, composite materials and stone processing.

Intelligent production system: supports full-size plate processing, meeting the needs of mass production of door panels, building components and so on.

Three-dimensional molding technology: five-axis linkage to achieve complex surface processing, taking into account the artistic shape and functional structure design.

5×10-foot industrial CNC machine tool has become the core equipment for modern manufacturing enterprises to realize precision machining, mass production and artistic creation by virtue of its intelligent processing system and large processing capacity. Its multi-disciplinary application characteristics can not only meet the efficient output of standardized products, but also realize the precision manufacturing of personalized customized products, which is the ideal choice for industrial upgrading.

For more information about the core parameters of the 5×10-foot industrial CNC machine, please contact our technical team for more information.

Accessories for Industrial CNC Machine 5×10 with Dual ATC Kits

Slides for Industrial CNC Machine 5×10 with Dual ATC Kits

Industrial CNC Machine 5×10 with Dual ATC Kits Automatic Tool Changer

Dust Extraction Device for Industrial CNC Machine 5×10 with Dual ATC Kits

Advantages of TechPro CNC

As a trusted leader in CNC machine tools, TechPro is committed to providing total process solutions for global industrial organizations. The following are the reasons why enterprises in various regions of the world choose TechPro:

Full Dimension Customer Support

24/7 Multi-language Technical Support

The global service network provides 7×24-hour real-time response, and quickly solves technical problems through video diagnosis, online meetings and other diversified methods.

Full-cycle Professional Engineer Tracking

Pre-sales stage by a team of senior engineers to provide model selection consulting (covering 3-axis / 4-axis / 5-axis / composite models), customized production solutions.

After-sales implementation of standardized on-site installation process, providing operation certification training and lifelong technical guidance.

Resident Service Guarantee

Set up technical service stations in key areas, equipped with a rapid response team to ensure emergency fault response within 2 hours.

Excellent Quality Assurance

Precision Manufacturing Standards

Adopt five-level precision testing system (including 48 factory testing items), and each unit comes with laser calibration certification.

Long-lasting Operation Design

The main structure is made of high torsion cast iron, and the core components are equipped with international first-tier brands (e.g. Siemens/Fanuc system), with an average trouble-free time of 12,000 hours.

Comprehensive Service Ecosystem

Customized Development Capability

Equipped with a 30-member R&D team, the company supports the development of special process modules (shaped processing/composite material treatment, etc.) and has accumulated 127 customized cases.

Visualization Experience

Provide digital demonstration solutions such as VR virtual workshop roaming and real-time machining live streaming.

Agile Delivery System

Through VMI supplier inventory management, regular models can be delivered in 14 days, and urgent orders can be transported by air.

Customer-centered

Continuous Improvement Mechanism

We have established a digital management platform for customer suggestions, released quarterly product iteration reports, and optimized a total of 136 functions in the past three years.

Full-process Collaboration Support

From process analysis to capacity planning, the professional technical team is deeply involved in the construction of the customer’s production system.

Proven Industry Leadership

Professional Technical Team

The service network consists of 30+ certified engineers, holding 37 international technical certifications.

Cross-field Solutions

Achieve titanium alloy whole component processing in the aerospace industry, unique surface relief technology in the woodworking industry, and ±0.003mm machining accuracy for automotive molds.

Why TechPro?

1. Reliable Productivity: The combination of German design concepts and Japanese quality control system ensures ten years of stable equipment operation.
2. Cost Controllability: Vertical supply chain management reduces the price of equipment by 15-20% compared to the same industry, and supports installment and financial leasing programs.
3. Process Adaptability: Open control system architecture, support for third-party software seamless docking.
4. Investment Security: Provide three-year warranty for the whole machine and lifelong maintenance for core components.
5. Development Synergy: Regularly push the industry cutting-edge technology white paper, help customers to grasp the opportunities of intellectual upgrading.

TechPro has always been adhering to the concept of “intellectual empowerment, value coexistence”, and through continuous technological innovation and service upgrading, it has helped 2300+ enterprises around the world to realize the improvement of production efficiency. Whether it’s a start-up workshop or a conglomerate manufacturing enterprise, we can provide smart manufacturing solutions that match its stage of development, making precision manufacturing simpler, more efficient and more competitive.

Contact Us for Exclusive Solutions:

☎ 24-hour Service Line: +86 17686683792 (Tel/WhatsApp/WeChat)

✉ Technical Consultation Email: admin@techprocnc.com

⌨ Online Customer Service System: official website real-time dialog window.

If you are considering purchasing a new Industrial CNC machine 5×10 or other CNC machine, please contact our sales team and we will provide you with the best solution in the shortest possible time.
