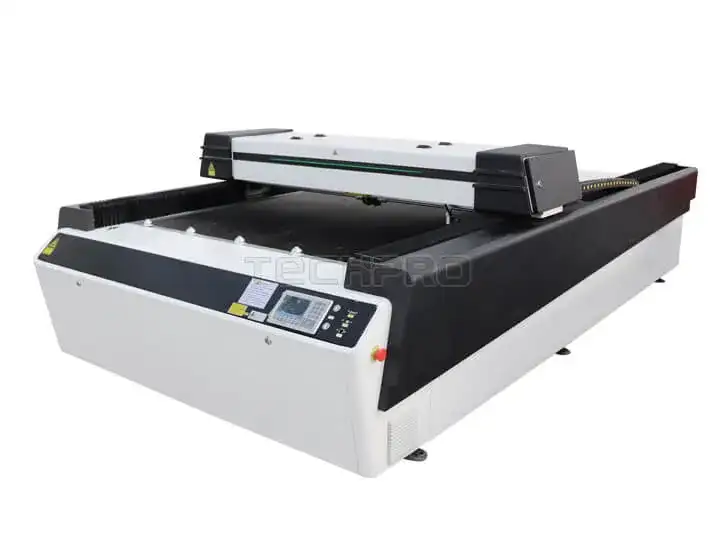

Wood MDF Laser cutting machine TPJ1530 for sale

  • Application: Wood MDF Acrylic Rubber Leather Cloth etc.
  • Working Area: 1500*3000mm / Laser Power: 60w~300w
SKU: TPJ1530 Category:

Working Video:

Features of Laser cutting machine TPJ1530:

  1. Precise engraving , professional engraving optical lens with more stable light beam.
  2. Equipped with red light position, making locating more convenient and precise, low friction coefficient, low noise and high speed.
  3. High-quality laser tube, laser power supply, reduce the failure rate.
  4. Lift platform is optional, the lifting height can be up to 300mm.
  5. High-performance motherboard: support U disk to read, with power continuous carving, slope carving, color separation output and other functions
  6. Rotary carving fitting can be optional according to customer requirements, to solve the difficulties in carving for cylinder and irregular products.
  7. Off-Line Functionality: control panel can store 128MB of files, in the case of completely out of the computer, the user can select files on the engraving machine, easy production of different products.
  8. Design software of CAD, AI, Coreldraw are all supported for friendly human-computer interface and demand of the industries on-the-spot.

Applicable Industries of Laser cutting machine TPJ1530:

Co2 laser cutting engraving machine is applied in garment,leather,cloth toys,computer embroidery cutting ,mould ,crafts,bamboo and wood,advertising and building decoration,packaging and printing,paper products,etc.

Applicable Materials of Laser cutting machine TPJ1530:

Co2 laser machine main processing Acrylic, Double-color sheet, MDF, non-metal materials like leather, cloth, rubber, wooden boards, bamboo products, organic glass, plastics, marble, jade, crystal, etc.

Technical Parameters of Laser cutting Machine TPJ1530:

ModelTPJ1530
Working area1500*3000mm
Laser tuber watts80~300w
Laser tube typeCo2 sealed laser tube
Control systemAdvanced RD control system
Control softwareRD Works
Cutting speed1-50mm/s
Engraving speed1-500mm/s
Motion driver systemHigh-speed stepper motors
Resolution4500dpi
Cooling modeWater cooling
Position wayRed light positioning
Locating precision≤0.01mm
TableKnife strip/Honey comb worktable
Compatible softwareCoreldraw, Autocad, Photoshop, etc.
Print interfaceEthernet or USB interface. Compatible with Windows 10/8/7/XP. etc.
Graphic formatBMP, PLT, DST, AL, DXF
Electrical requirementsAC110V/220V, 50HZ/60HZ
Working environmentTemperature: 0-45℃, Humidity: 5%-95% non-condensate

Parts of Laser cutting Machine TPJ1530:



Samples of Laser cutting Machine TPJ1530:


Packing and Shipping Detail of Laser Cutting Machine TPJ1530

1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size:4250*2220*1350mm ,GW: 1000kg
Shipped in 5-10 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Electrical components, limit switches etc)

Our Service of Laser Cutting Machine TPJ1530

1.) Warranty: One year on parts from date of shipping date, 3 years for free repair. Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, laser application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
5.) 3-5 days free machine training when visit our factory .
6.) International quality certificate: FDA,CE, ISO9001 SGS etc.
