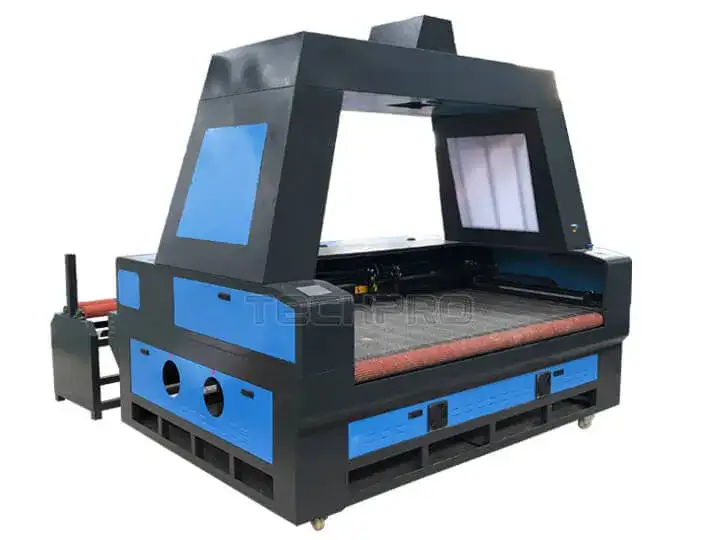

CCD camera laser cutting machine for sale

  • CCD Camera: Automatic positioning scan
  • Working Area: 1300*900mm / Laser Power: 60w~300w
SKU: TPJ1390C Category:

Working Video:

Features of Laser cutting machine TPJ1390C:

  1. The CCD camera laser machine can compensate automatically to pinpoint deformation of the fabric,it ensures the accuracy of cutting.
  2. The camera can get every edge of the objection and extend (entad or forth) expected distance, and then cut them. According to common knowledge, the fabric labels may a little different from each other, and adoption of this technology can solve this problem.
  3. Install 2-3 million pixel colorful camera. Can do accurately locating cutting for those edge-immovable objections. For example, it can accurately cut those distorted-not-much fabric labels.
  4. High-performance motherboard: support U disk to read, with power continuous carving, slope carving, color separation output and other functions
  5. Rotary carving fitting can be optional according to customer requirements, to solve the difficulties in carving for cylinder and irregular products.
  6. Off-Line Functionality: control panel can store 128MB of files, in the case of completely out of the computer, the user can select files on the engraving machine, easy production of different products.
  7. Design software of CAD, AI, Coreldraw are all supported for friendly human-computer interface and demand of the industries on-the-spot.

Applicable Industries of Laser cutting machine TPJ1390C:

Co2 laser cutting engraving machine is applied to Acrylic led letter,leather,cloth toys,computer embroidery cutting ,mould ,crafts,bamboo and wood,advertising and building decoration,packaging and printing,paper products,etc.

Applicable Materials of Laser cutting machine TPJ1390C:

Co2 laser machine main processing Acrylic, Double-color sheet, MDF, non-metal materials like leather, cloth, rubber, wooden boards, bamboo products, organic glass, plastics, marble, jade, crystal, etc.

Technical Parameters of Laser cutting Machine TPJ1390C:

ModelTPJ1390C
Working area1300*900mm
Laser tuber wattsReci 60w-300w
Laser tube typeCo2 sealed laser tube
Control systemRD control system with CCD Camera
Cutting speed1-50mm/s
Engraving speed1-500mm/s
Motion driver systemHigh-speed stepper motors
Resolution4500dpi
Cooling modeWater cooling
Position wayRed light positioning
Locating precision≤0.01mm
TableKnife strip/Honey comb worktable
Compatible softwareCoreldraw, Autocad, Photoshop, etc.
Print interfaceEthernet or USB interface. Compatible with Windows 10/8/7/XP. etc.
Graphic formatBMP, PLT, DST, AL, DXF
Electrical requirementsAC110V/220V, 50HZ/60HZ

Parts of Laser cutting Machine TPJ1390C:



Samples of Laser cutting Machine TPJ1390C:

Packing and Shipping Detail of Laser Cutting Machine TPJ1390C

1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size:2250*1570*1320mm ,GW: 680kg
Shipped in 5-10 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Electrical components, limit switches etc)

Our Service of Laser Cutting Machine TPJ1390C

1.) Warranty: One year on parts from date of shipping date, 3 years for free repair. Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, laser application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
5.) 3-5 days free machine training when visit our factory .
6.) International quality certificate: FDA,CE, ISO9001 SGS etc.
